1. MAINTAINABILITY |
1.1 ACCESSIBILITY OF COMPONENTS AND
SUBSYSTEMS
1.1-I. TEST OBJECTIVE
The
objective of this test is to check the accessibility of components and
subsystems.
1.1-II. TEST DESCRIPTION
Accessibility
of components and subsystems is checked, and where accessibility is restricted
the subsystem is noted along with the reason for the restriction.
1.1-III. DISCUSSION
Accessibility,
in general, was adequate. Components covered in Section 1.3 (repair and/or replacement of selected
subsystems), along with all other components encountered during testing, were
found to be readily accessible and no restrictions were noted. Note: the upper alternator (add-on)
must be removed to gain access to the lower (OEM) alternator.
ACCESSIBILITY
DATA FORM
Bus Number: 0706
|
Date: 9-5-07
|
Component
|
Checked
|
Comments
|
ENGINE :
|
|
|
Oil
Dipstick
|
X |
|
Oil
Filler Hole
|
X
|
|
Oil
Drain Plug
|
X
|
|
Oil
Filter
|
X
|
|
Fuel Filter
|
X |
|
Air
Filter
|
X |
|
Belts
|
X |
|
Coolant Level
|
X
|
|
Coolant Filler Hole
|
X |
|
Coolant Drain
|
X
|
|
Spark / Glow Plugs
|
N/A
|
|
Alternator
|
X |
Two alternators – upper is very accessible, the
upper alternator must be removed to gain access to the lower.
|
Diagnostic Interface Connector
|
X |
|
TRANSMISSION :
|
|
|
Fluid Dip-Stick
|
X |
|
Filler Hole
|
X |
|
Drain Plug
|
X |
|
SUSPENSION :
|
|
|
Bushings
|
X |
|
Shock Absorbers
|
X |
|
Air
Springs
|
X |
|
Leveling Valves
|
X |
|
Grease Fittings
|
X |
|
ACCESSIBILITY
DATA FORM
Bus Number: 0706
|
Date: 9-5-07
|
Component
|
Checked
|
Comments
|
HVAC :
|
|
|
A/C
Compressor
|
X |
|
Filters
|
X |
|
Fans
|
X
|
|
ELECTRICAL SYSTEM :
|
|
|
Fuses
|
X |
|
Batteries
|
X |
|
Voltage regulator
|
X |
|
Voltage Converters
|
X |
|
Lighting
|
X
|
|
MISCELLANEOUS :
|
|
|
Brakes
|
X |
|
Handicap Lifts/Ramps
|
X |
|
Instruments
|
X |
|
Axles
|
X |
|
Exhaust
|
X |
|
Fuel System
|
X |
|
OTHERS :
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.2 SERVICING, PREVENTIVE MAINTENANCE, AND REPAIR
AND MAINTENANCE DURING TESTING
1.2-I. TEST OBJECTIVE
The objective of this test is to collect
maintenance data about the servicing, preventive maintenance, and repair.
1.2.-II. TEST DESCRIPTION
The test will be conducted by operating the NBM and
collecting the following data on work order forms and a driver log.
1. Unscheduled Maintenance
a. Bus
numberb. Date
c. Mileage
d. Description of malfunction
e. Location of malfunction (e.g., in service or undergoing inspection)
f. Repair action and parts used
g. Man-hours required
2. Scheduled Maintenance
a. Bus
number
b. Date
c. Mileage
d. Engine running time (if available)
e. Results of scheduled inspections
f. Description of malfunction (if any)
g. Repair action and parts used (if any)
h. Man-hours required
The buses will be operated in accelerated
durability service. While typical
items are given below, the specific service schedule will be that specified by
the manufacturer.
A. Service
1. Fueling
2. Consumable checks
3. Interior cleaning
B. Preventive Maintenance
4. Brake adjustments
5. Lubrication
6. 3,000 mi (or equivalent) inspection
7. Oil
and filter change inspection
8. Major inspection
9. Tune-up
C. Periodic Repairs
1. Brake reline
2. Transmission change
3. Engine change
4. Windshield wiper motor change
5. Stoplight bulb change
6. Towing operations
7. Hoisting operations
1.2-III. DISCUSSION
Servicing and preventive maintenance were performed

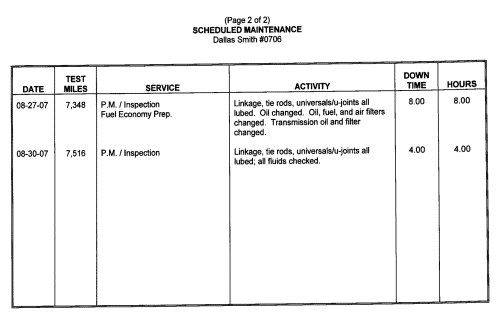

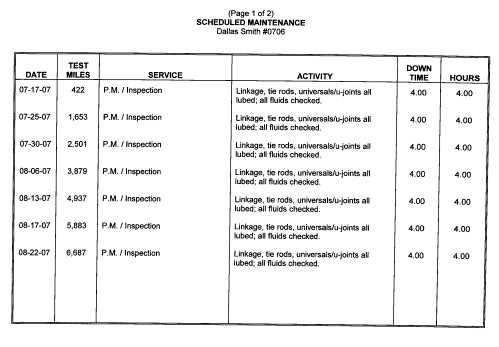

at manufacturer-specified intervals. The following Scheduled Maintenance Form lists the mileage, items
serviced, the service interval, and amount of time required to perform the
maintenance. Table 1 is a list of
the lubricating products used in servicing. Finally, the Unscheduled Maintenance List along with
Unscheduled Maintenance-related photographs is included in Section 5.7,
Structural Durability. This list
supplies information related to failures that occurred during the durability
portion of testing. The Unscheduled
Maintenance List includes the date and mileage at which the malfunction
occurred, a description of the malfunction and repair, and the time required to
perform the repair.
Table
1. STANDARD LUBRICANTS
The following is a list of Texaco lubricant
products used in bus testing conducted by the Penn State University Altoona Bus
Testing Center:
ITEM |
PRODUCT CODE |
TEXACO DESCRIPTION |
Engine oil |
#2112 |
URSA Super Plus SAE 30 |
Transmission oil |
#1866 |
Automatic Trans Fluid
Mercon/Dexron II Multipurpose |
Gear oil |
#2316 |
Multigear Lubricant
EP SAE 80W90 |
Wheel bearing & Chassis grease |
#1935 |
Starplex II |
1.3 REPLACEMENT AND/OR REPAIR OF SELECTED
SUBSYSTEMS
1.3-I. TEST OBJECTIVE
The objective of this test is to establish the time
required to replace and/or repair selected subsystems.
1.3-II. TEST DESCRIPTION
The test will involve components that may be
expected to fail or require replacement during the service life of the
bus. In addition, any component
that fails during the NBM testing is added to this list. Components to be included are:
1. Transmission
2. Alternator
3. Starter
4. Batteries
5. Windshield
wiper motor
1.3-III. DISCUSSION
During the test, several additional components were
removed for repair or replacement. Following is a list of components and total repair/replacement time.
MAN HOURS
Both suspension travel limit cables - 1.00
All tires - 2.00
At the end of the test, the remaining items on the
list were removed and replaced. The transmission assembly took 8.5 man-hours (two men 4.25 hrs) to
remove and replace. The time
required for repair/replacement of the four remaining components is given on
the following Repair and/or Replacement Form.
REPLACEMENT AND/OR
REPAIR FORM
Subsystem
|
Replacement
Time
|
Transmission
|
8.50
man hours
|
Wiper Motor
|
0.50
man hours
|
Starter
|
0.25
man hours
|
Alternator
|
1.00
man hours
|
Batteries
|
0.25
man hours
|
1.3
REPLACEMENT AND/OR REPAIR OF SELECTED
SUBSYSTEMS
TRANSMISSION REMOVAL AND
REPLACEMENT - (8.50
MAN HOURS) |
WIPER MOTOR REMOVAL AND
REPLACEMENT - (0.50
MAN HOURS) |
STARTER REMOVAL AND REPLACEMENT - (0.25
MAN HOURS) |
|
|
